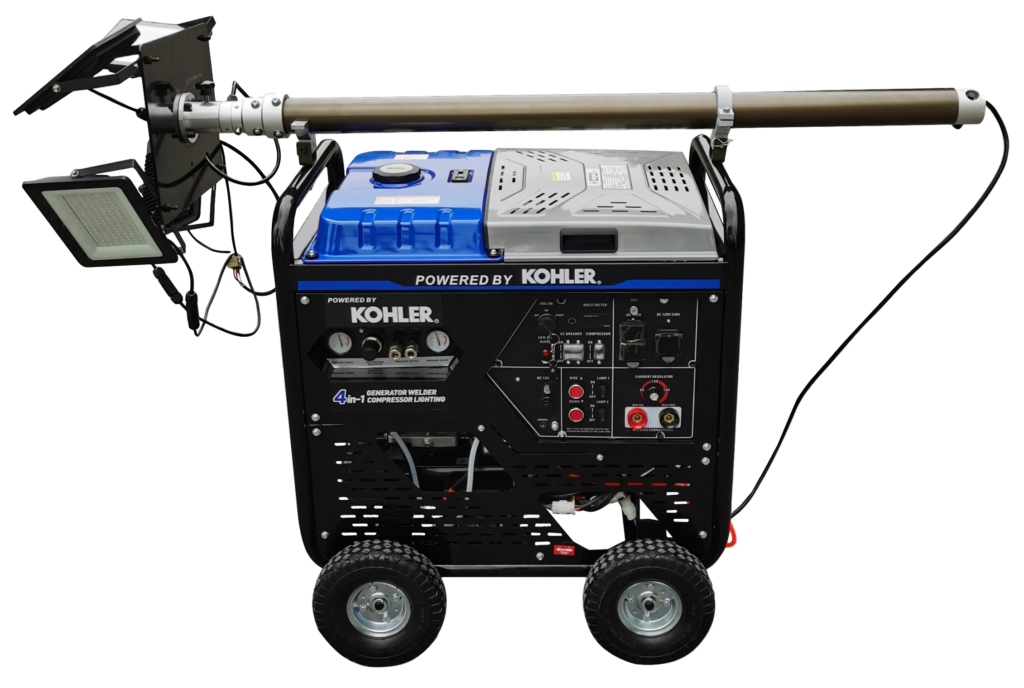

FEATURES

• Kohler CH440
• Gasoline Engine
• Circuit Breaker Protection
• Electric Start / Recoil Start
• Welder
• 5 Gallon Air Compressor
• Low Oil Shutdown

SPECIFICATIONS

Generator/Engine

• Maximum Output – 5000 Continuous, 5500 Surge Watts
• Total Amperage – 23 AMPS
• Single Phase – 60Hz
• Engine HP – 14Hp
• RPM – 3600 +/- 150
• Receptacles – (1)120v (1)240v (1)12vdc
• Noise Level – 74 dB @ 10′
• Fuel Capacity – 7.9 Gallons
• Single Phase – 60Hz
• Oil Capacity – 44OZ (1.4 U.S qt)
• Oil Weight– 10w-30
• Size– L-35″, W-24″, H-32″
• Net Weight – 405 Lbs.
• Approximate Run Time -13 Hours at 50% Load

Welder

• Duty Cycle – 50%
• No Load Voltage – DC 75V
• Welding Rod – 1.6-5.0mm
• Rated Current/Voltage – 180A / 27.2v

Air Compressor

• Tank Capacity – 5.2 Gallons
• Stage – Single
• Rate Of Flow – 26gpm
• Pressure Range – 87-116psi

Lighting Tower

• Lighting Lamp – LED/ 4x100W
• Luminous Flux – 80-100lm/W

---
